Genesis Steel Base Valve Shocks

The GSB1, GSB2, and GSB3 are steel mono-tube, non-adjustable gas shocks.  Shocks are available in 7" and 9" lengths and any possible valving or split valving.

The GSB series has a large built-on gas reservoir.  This increases the volume of gas within the shock and lowers unwanted increase in rod pressure that comes with stroke.  It has a base valve that allows the shock to be effectively operated from 20 to 300 psi gauge pressure.

GSB Series Features

• Large 48mm bore for maximum control and reduction of rod pressure buildup.
• Positive stainless steel no-drag scraper to keep any dirt and debris out.
• Largest 75mm built on gas reservoir.
• The finest high quality, high viscosity index, 100% synthetic shock oil with virtually zero thermal expansion.
• Has a base valve that allows the shock to be effectively operated from 20 to 300 PSI gauge pressure.

• Double checked low-speed valving design.

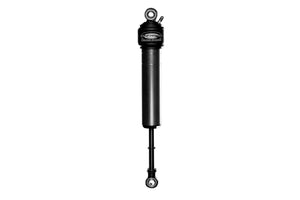

GSB1 - Non-Adjustable Steel Base Valve Shock, with Bulb

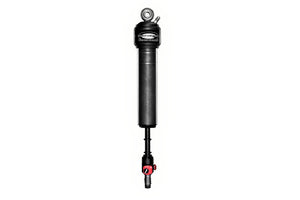

GSB2 - Single Adjustable Steel Base Valve Shock, with Bulb

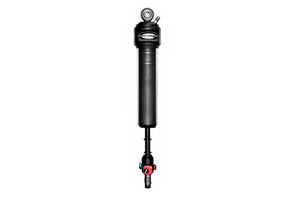

GSB3 - Double Adjustable Steel Base Valve Shock, with Bulb
